NUF4402MN

 EMI Filter, 4-Channel, with Integrated ESD Protection

制造商：ON

中文资料及数据手册

在线购买

产品信息

This device is a 4 line EMI filter array for wireless applications.Greater than -25 dB attenuation is obtained at frequencies from 800 MHz to 3.0 GHz.It also offers ESD protection-clamping tranients from static discharges.ESD protection is provided across all capacitors.
  • EMI Filtering and ESD Protection
  • Integration of 12 Discrete Components
  • Compliance with IEC61000-4-2 (Level 4) 8.0 kV (Contact) and 15 kV (Air)
  • DFN Package, 1.6 x 1.6 mm
  • Moisture Sensitivity Level 1
  • ESD Ratings:Machine Model = C and Human Body Model = 3B

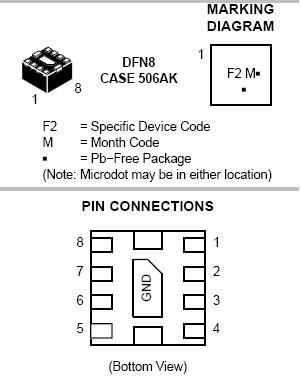

电路图、引脚图和封装图

    NUF4402MN电路图
