NUF4401MN

 EMI Filter, 4-Channel, with Integrated ESD Protection

制造商：ON

中文资料及数据手册

在线购买

产品信息

NUF4401MN is a 4 line EMI filter array for wireless applications.It offers greater than -35 dB attenuation at frequencies from 900 MHz to 2.4 GHz.This device also offers ESD protection - clamping transients from static discharges and ESD protection is provided across all capacitors.
  • Provides EMI Filtering and ESD Protection
  • Integration of 12 Discretes
  • Compliance with IEC61000-4-2 (Level 4)8 kV (Contact)15 kV (Air)
  • DFN8, 2x2 mm Package
  • Moisture Sensitivity Level 1
  • ESD Ratings:Machine Model = C and Human Body Model = 3B

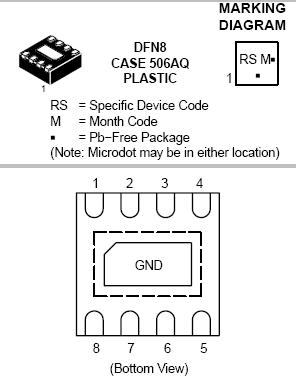

电路图、引脚图和封装图

    NUF4401MN电路图
