NUF4220MN is a 4 line LC EMI filter array designed for audio applications.It offers greater than -30 dB attenuation at frequencies from 800 MHz to 5.0 GHz, with no line loss.This part is a single chip solution for audio interface applications, 2 speaker lines with a microphone line.This device also offers ESD protection-clamping transients from static discharges and ESD protection is provided across all capacitors.

• Provides EMI Filtering and ESD Protection
• Integration of 20 Discretes
• Compliance with IEC61000-4-2 (level 4) 18 kV(Contact)

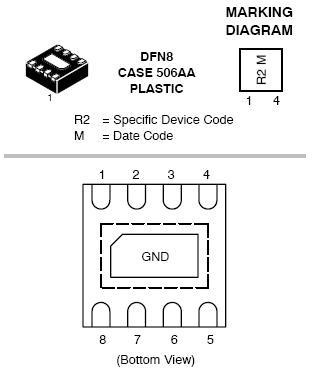

• DFN8, 2x2 mm Package
• Moisture Sensitivity Level 1
• ESD Ratings:Machine Model = C and Human Body Model = 3B
• Excellent Line Efficiency with Low Line Resistance
• This is a Pb-Free Device
