This device is a 4 line EMI filter array for wireless applications.Greater than -20 dB attenuatuion is obtained at frequencies from 800 MHz to 3.0 GHz.It also offers ESD protection-clamping transients from static discharges.ESD protection is provided across all capacitors.

• EMI Filtering and ESD Protection
• Integration of 20 Discrete Components
• Compliance with IEC61000-4-2 (level 4), > 8 kV (Contact)

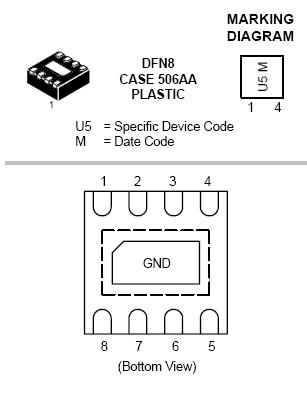

• DFN Package, 2x2 mm
• Moisture Sensitivity Level 1
• ESD Ratings:Machine Model = C and Human Body Model = 3B
• This is a Pb-Free Device
• Reduces Parasitic Inductances, Which Offer a More Ideal Low Pass Filter Response
