This device is a 4 line EMI filter array for wireless applications.Greater than -25 dB attenuation is obtained at frequencies from 800 MHz to 5.0 GHz.The NUF4001MU has a cut-off frequency of 150 MHz and can be used in applications for data rate up to 58 MHz or 116 Mbs.This UDFN package is specifically designed to enhance EMI filtering for low-profile or slim design electronics especially where space and height is a premium.It also offers ESD protection-clamping transients from static discharges.ESD protection is provided across all capacitors.

• EMI Filtering and ESD Protection
• Integration of 20 Discrete Components

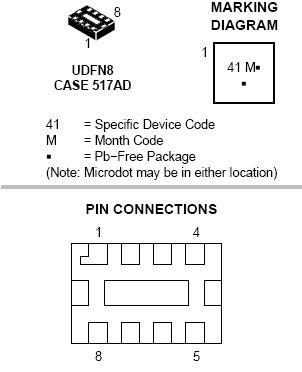

• UDFN Package, 1.2 x 1.8 mm
• Moisture Sensitivity Level 1
• ESD Ratings:Machine Model = C, Human Body Model = 3B
• Compliance with IEC61000-4-2 (Level 4) > 14 kV (Contact)
• This is a Pb-Free Device
