NUF2441

 EMI Filter, Integrated, Passive, with ESD Protection

制造商：ON

中文资料及数据手册

在线购买

产品信息

This device is designed for cell phone applications requiring Headset and Speaker Phone, EMI Filtering and ESD Protection.This device offers an intergrated solution in a small package reducing PCB space and cost.
  • Provides EMI Filtering and ESD Protection
  • Single IC Offers Cost Saving by Replacing 2 Inductors, 4 Capacitors, and 4 TVs diodes
  • Compliance with IEC61000-4-2, (Level 4) 8kV (Contact), 15kV (air)
  • Flip-Chip Package
  • Moisture Sensitivity Level 1
  • ESD Ratings: Machine Model = C, Human Body Model = 3B
  • Pb-Free Solder Bumps

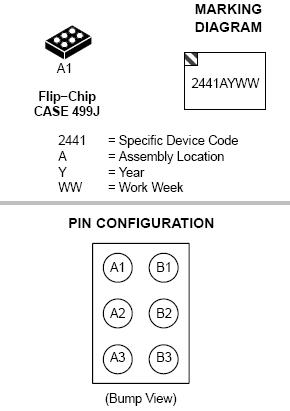

电路图、引脚图和封装图

    NUF2441电路图
