NUF2230

 EMI Filter, 2 Line, with ESD Protection

制造商：ON

中文资料及数据手册

在线购买

产品信息

This device is a 2 line EMI filter array for wireless applications.Greater than -30 dB attenuation is obtained at frequencies from 800 MHz to 900 MHz.It also offers ESD protection-clamping transients from static discharges.ESD protection is provided across all capacitors.
  • EMI Filtering and ESD Protection
  • Integration of 10 Discrete Components
  • Compliance with IEC61000-4-2 (Level 4), > 8.0 kV (Contact)
  • SOT-563 Package
  • MoistureSensitivity Level 1
  • This is a Pb-Free Device

电路图、引脚图和封装图

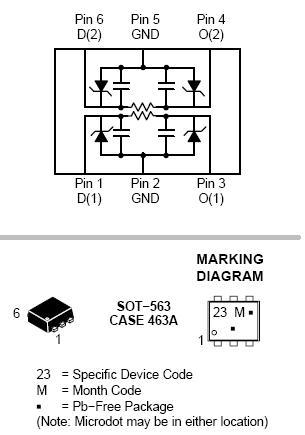

    NUF2230电路图
