NUF2221

 EMI Filter, Upstream Terminator with ESD Protection

制造商：ON

中文资料及数据手册

在线购买

产品信息

This device is designed for applications requiring line termination, EMI filtering and ESD protection.It is intended for use in upstream USB ports, cellular phones, wireless equipment and computer applications.This device offers an integrated solution in a small package (SC-88/SOT-363) reducing PCB space and cost.
  • Provides USB Line Termination, Filtering and ESD Protection
  • Single IC Offers Cost Savings
  • Bi-directional EMI Filtering Prevents Noise from Entering/Leaving the System
  • Compliance with IEC61000-4-2 (Level 4)
  • 8 kV (Contact)
  • 15 kV (Air)
  • Flexible Pull-up Line Termination to Meet USB 1.1 Low Speed and High Speed Specification
  • ESD Ratings: Machine Model = C
  • Human Body Model = 3B
  • Pb-Free Package is Available

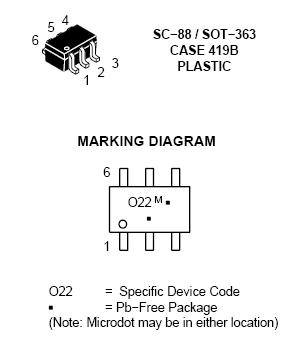

电路图、引脚图和封装图

    NUF2221电路图
