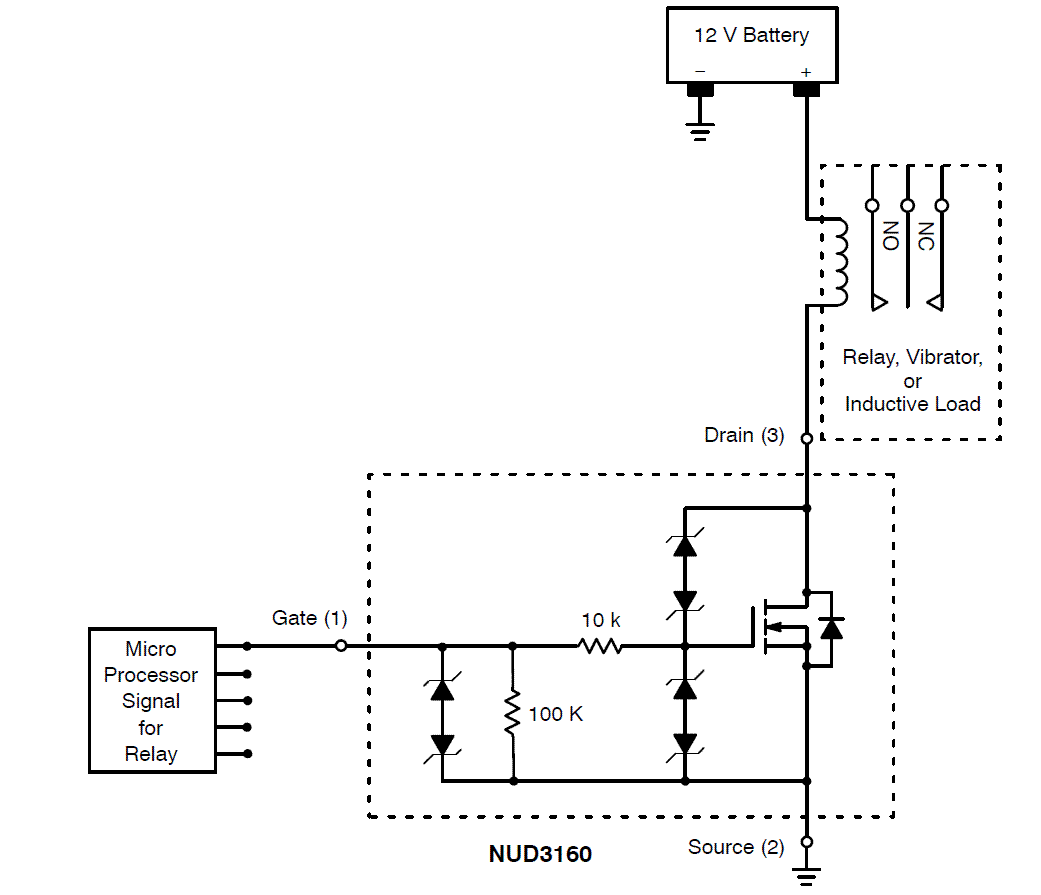

This micro-integrated device provides a one component solution to switch inductive loads such as relays, solenoids, and small dc motors without the need for a free-wheeling diode. It accepts logic level inputs, thus allowing it to be driven by a large variety of devices including logic gates, inverters, and microcontrollers.

• Provides Robust Interface between DC Relay Coils and Sensitive Logic
• Capable of Driving Relay Coils Rated up to 150 mA at 12 V, 24 V or 48 V
• Replaces 3 or 4 Discrete Components for Lower Cost
• Internal Zener Eliminates Need for Free-Wheeling Diode
• Meets Load Dump and other Automotive Specs
