This PIN diode is designed to realize compact and efficient designs. Two PIN diodes are incorporated in one SC-70 package. The use of dual PIN diodes can reduce both system cost and board space. This PIN diode is AEC-Q101 qualified and PPAP capable for automotive applications.

• Series connection of 2 elements in a small-size package
• Small Interterminal Capacitance (C = 0.23 pF typ)
• Small Forward Series Resistance (rs = 2.5 Ω typ)
• Pb-Free, Halogen Free and RoHS compliance
• AEC-Q101 qualified and PPAP capable

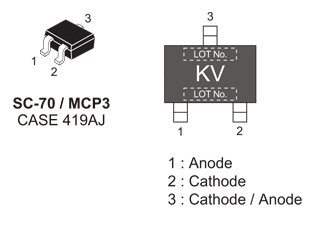

• MCP3 package is pin-compatible with SC-70
