元器件型号、描述、参数

NSVP249SDSF3

 PIN Diode, Dual series PIN Diode for VHF, UHF and AGC

制造商：ON

中文资料及数据手册

在线购买

产品信息

This PIN diode is designed to realize compact and efficient designs. Two PIN diodes are incorporated in one SC-70 package. The use of dual PIN diodes can reduce both system cost and board space. This PIN diode is AEC-Q101 qualified and PPAP capable for automotive applications.
  • AEC-Q101 qualified and PPAP capable
  • Pb-Free, Halogen Free and RoHS Compliance
  • Series connection of 2 elements in a small-size package
  • MCP3 package is pin-compatible with SC-70
  • Small Interterminal Capacitance (C = 0.23 pF typ)
  • Small Forward Series Resistance (rs = 4.5 Ω max)

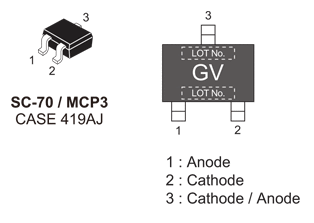

电路图、引脚图和封装图

    NSVP249SDSF3电路图
