NSVF3007SG3

 RF Transistor for Low Noise Amplifier

制造商：ON

中文资料及数据手册

在线购买

产品信息

This RF transistor is designed for low noise amplifier applications. MCPH package is suitable for use under high temperature environment because it has superior heat radiation characteristics. This RF transistor is AEC-Q101 qualified and PPAP capable for automotive applications.
  • Low-noise use : NF = 1.2 dB (typ) [f = 1 GHz]
  • High cut-off frequency : fT = 8 GHz (typ) [VCE = 5 V]
  • High gain : |S21e|
  • = 12 dB (typ) [f = 1 GHz]
  • AEC-Q101 qualified and PPAP capable
  • MCPH3 package is pin-compatible with SC-70FL
  • Pb-Free, Halogen Free and RoHS compliance
  • Low current operating

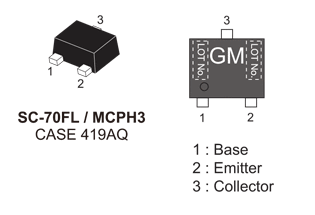

电路图、引脚图和封装图

    NSVF3007SG3电路图
