The NLSV4T3234 is a 4-bit configurable dual-supply bus buffer level translator. The input (B-) and output (A-) ports are designed to track two different power supply rails, VCCB and VCCA respectively. Both supply rails are configurable from 0.9V to 4.5V allowing universal low-voltage translation from the input (B-) to the output (A-) port.

• Wide VCCA and VCCB Operating Range
• High-Speed w/ Balanced Propagation Delay: 2.4 ns max at 3.0 to 3.6 V
• 26Series Resistors at Output (A-) Ports 26Series Resistors at Output (A-) Ports
• Inputs OVT to 4.5 V
• Non-preferential VCC Sequencing
• Outputs at 3-State until Active VCC is reached
• Power-Off Protection

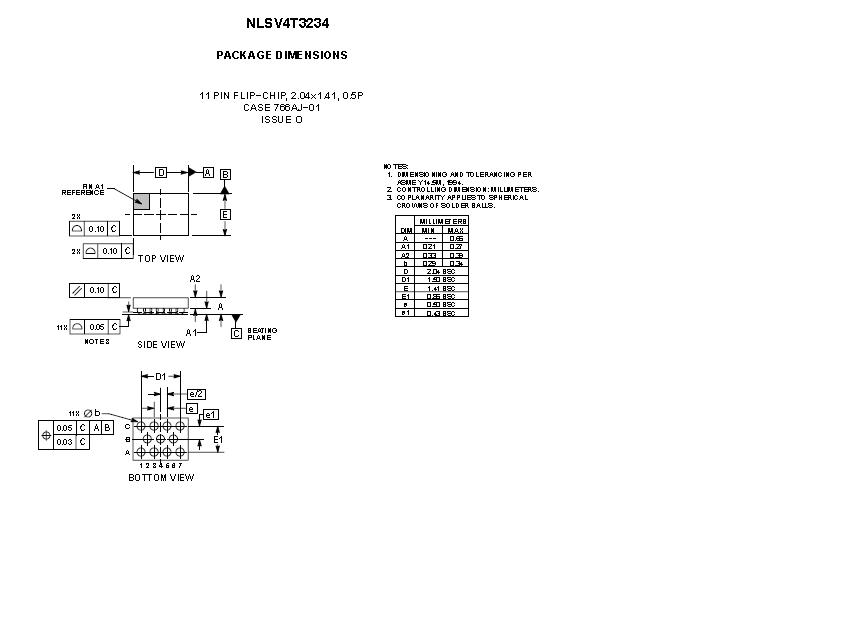

• Ultra-Small packaging: 1.41 mm x 2.04 mm FlipChip11
