NLSF1174

 Hex D Flip-Flop with Common Clock and Reset

制造商：ON

中文资料及数据手册

在线购买

产品信息

This device consists of six flip-flops with common Clock and Reset inputs. Each flip-flop is loaded with a low-tohigh transition; of the Clock input. Reset is asynchronous and active low. All inputs/outputs are standard CMOS compatible.
  • Output Drive Compatibility: 10 LSTTL Loads
  • Outpus Directly Interface to CMOS
  • Operation Voltage Range: 2 to 6 V
  • Low Input Current: 1.0 µ A
  • MSL Level 1
  • Chip Complexity: 162 FET
  • Pb-Free Package is Available

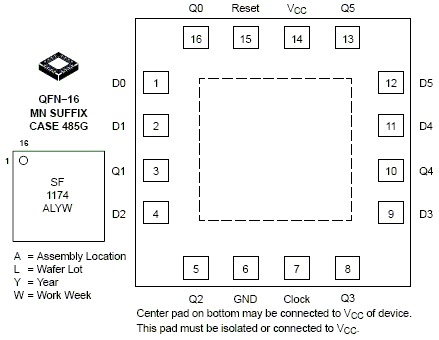

电路图、引脚图和封装图

    NLSF1174电路图
