NCV8452

 Self-Protected High Side Driver with Temperature Shutdown and Current Limit

制造商：ON

中文资料及数据手册

在线购买

产品信息

The NCV8452 is a fully protected high-side driver that can be used to switch a wide variety of loads, such as bulbs, solenoids and other activators. The device is internally protected from an overload condition by an active current limit and thermal shutdown.
  • Short Circuit Protection
  • Thermal Shutdown with Automatic Restart
  • CMOS (3 V/5 V) Compatible Control Input
  • Overvoltage Protection and Shutdown
  • Output Voltage Clamp for Inductive Switching
  • Under Voltage Shutdown
  • Loss of Ground Protection
  • ESD Protection
  • Reverse Battery Protection (with external resistor)
  • Very Low Standby Current
  • NCV Prefix for Automotive and Other Applications Requiring
  • Unique Site and Control Change Requirements; AEC-Q100
  • Qualified and PPAP Capable

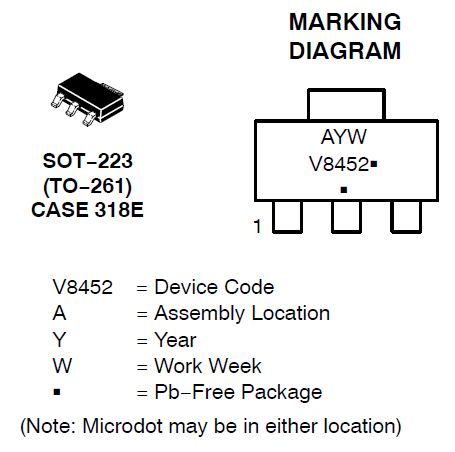

电路图、引脚图和封装图

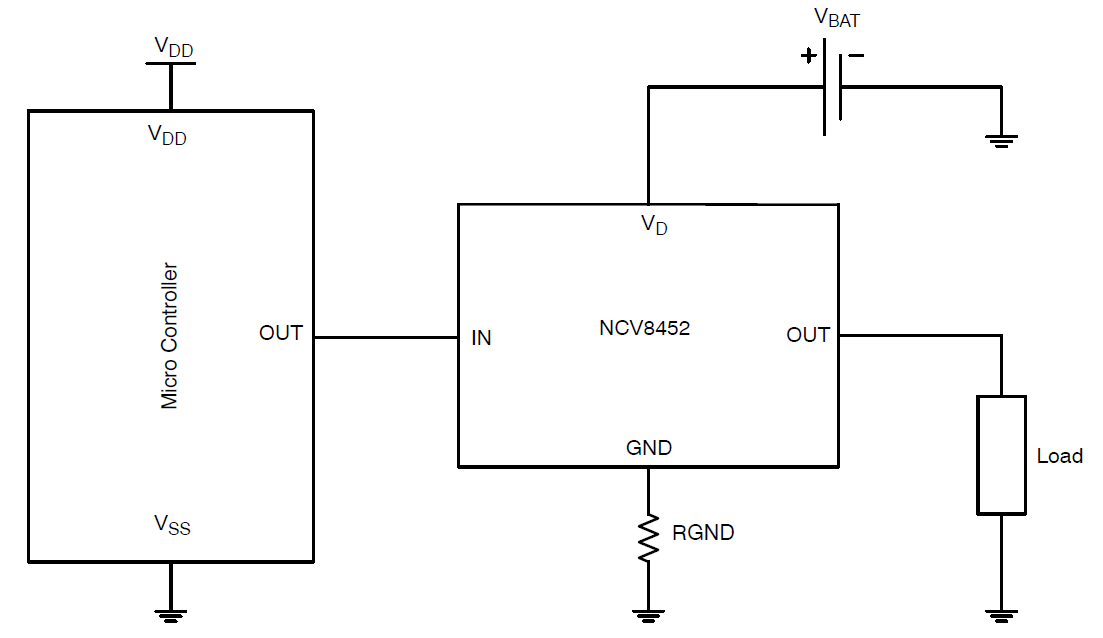

    NCV8452电路图
