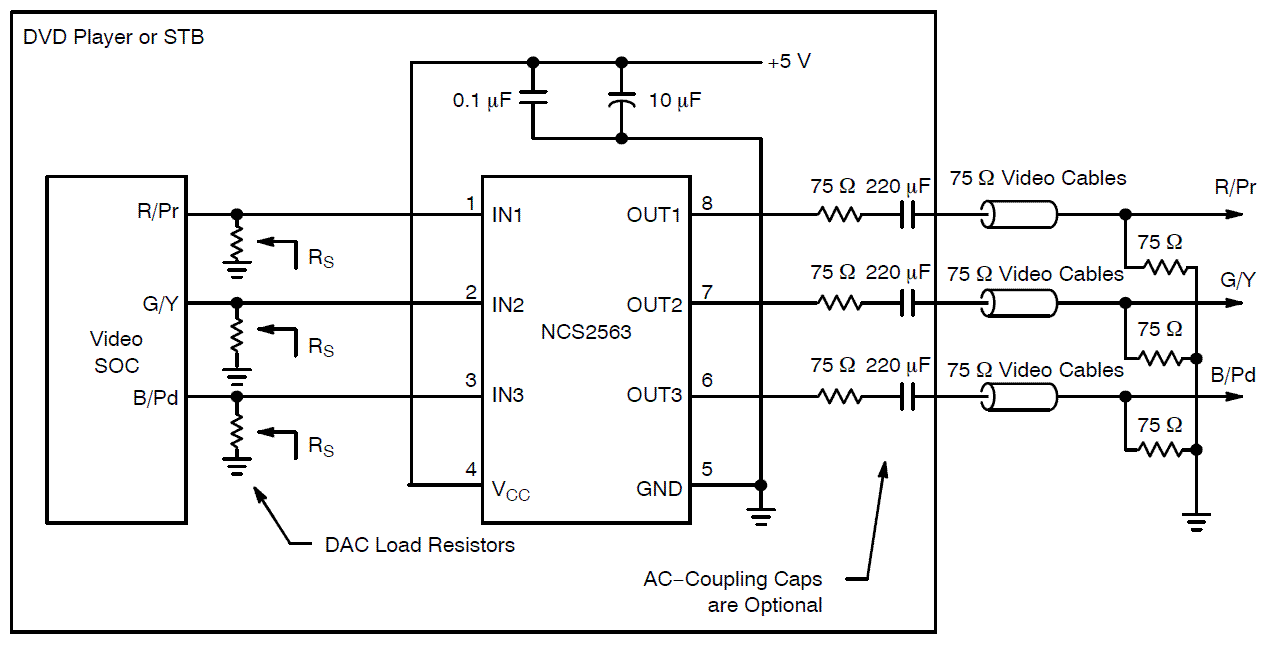

The NCS2563 is a 3-channel high speed video amplifier with 6th order Butterworth High Definition (HD) reconstruction filters and 6 dB gain. All three channels can accommodate all Component and RGB video signals. All channels can accept DC- or AC-coupled signals. If AC-coupled, the internal clamps are employed. The outputs can drive both AC- and DC-coupled 150 Ohm loads. It is designed to be compatible with most Digital-to-Analog Converters (DAC) embedded in most video processors.

• Three 6th Order High Definition 30 MHz Filters
• Internal Fixed Gain = 6 dB
• Transparent input clamp on each channel
• DC- or AC-Coupled Inputs/Outputs
• Integrated Level Shifters
• Operating voltage +5 V
• ESD HBM protection 8 kV
