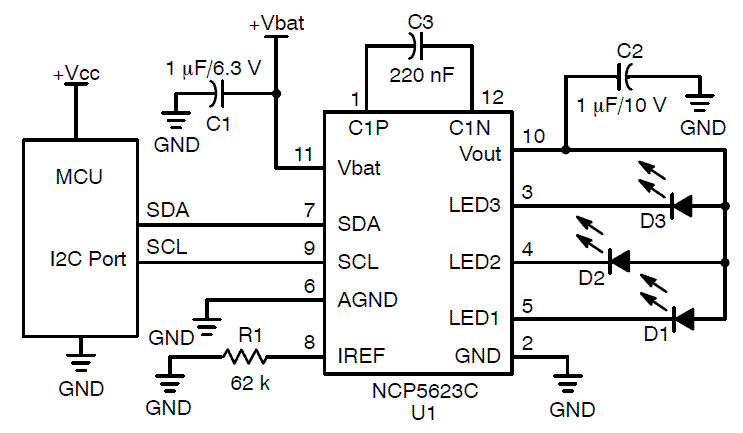

The NCP5623C mixed analog circuit is a triple output LED driver dedicated to the RGB illumination or backlight LCD display. The built in DC-DC converter is based on a high efficient charge pump structure with operating mode 1x and 2x. It provides a peak 94% efficiency. The tiny package makes the device suitable for room limited portable applications.

• 2.7 to 5.5 V input voltage range
• RGB function fully supported
• Programmable integrated gradual dimming
• 90 mA output Current Capability
• 94% peak efficiency
• Built-in short circuit protection
• Provides three independent LED drives
• Support full I
• C protocol
• Embedded OVP and open load protection
