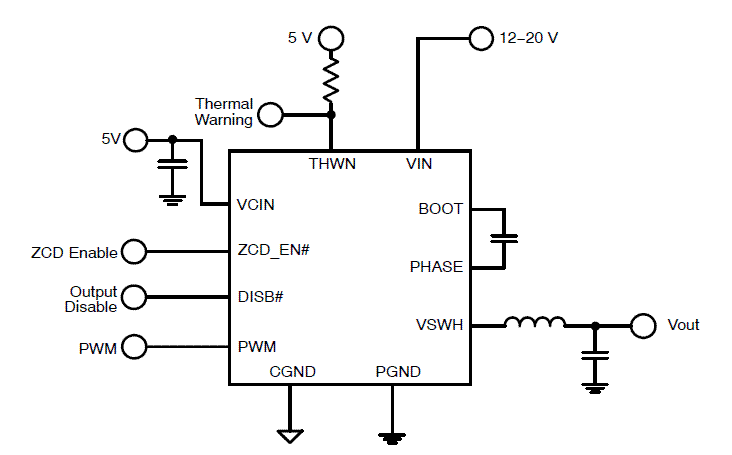

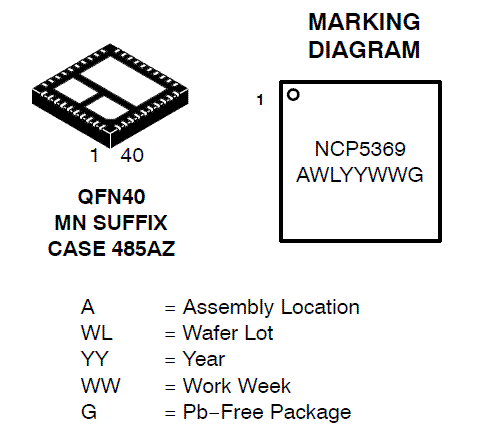

The NCP5369 integrates a MOSFET driver, high-side MOSFET and low-side MOSFET into a 6mm x 6mm 40-pin QFN package. The driver and MOSFETs have been optimized for high-current DC-DC buck power conversion applications. The NCP5369 integrated solution greatly reduces package parasitics and board space compared to a discrete component solution.

• Capable of switching frequencies up to 1 MHz
• Capable of output currents up to 35 A
• Internal bootstrap diode
• Zero current detection
• Internal thermal warning/shutdown
• Undervoltage lockout
