NCP5006

 LED Driver, Boost, Compact Backlight

制造商：ON

中文资料及数据手册

在线购买

产品信息

The NCP5006 is high efficiency boost converter operating in current loop, based on a PFM mode, to drive White LED. The current mode regulation allows a uniform brightness of the LEDs. The chip has been optimized for small ceramic capacitors, capable to supply up to 1.0 W output power.
  • 2.7 to 5.5 V Input Voltage Range
  • Vout to 24 V Output Compliance Allows up to 5 LEDs Drive in Series.
  • Built-in Over Voltage Protection
  • Inductor Based Converter brings up to 90% Efficiency
  • Constant Output Current Regulation
  • 0.3 µA Standby Quiescent Current
  • Includes Dimming Function (PWM)
  • Enable Function Driven Directly from Low Battery Voltage Source
  • Automatic LEDs Current Matching
  • Thermal Shutdown Protection
  • All Pins are Fully ESD Protected
  • Low EMI Radiation

电路图、引脚图和封装图

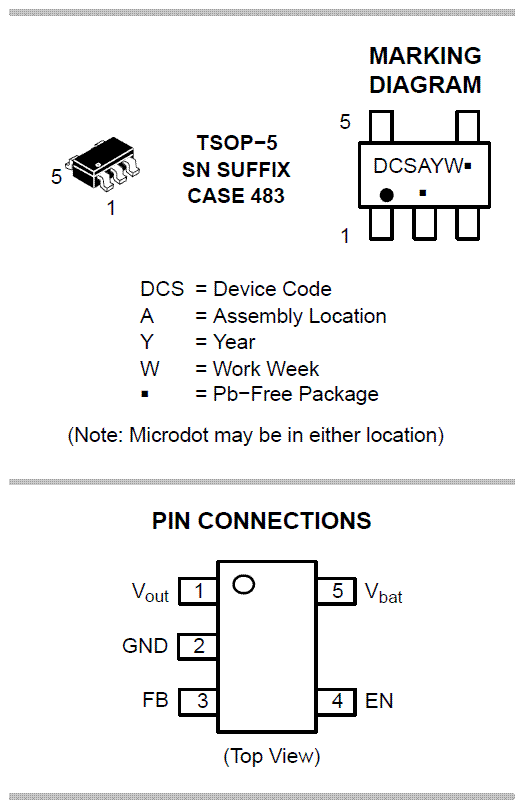

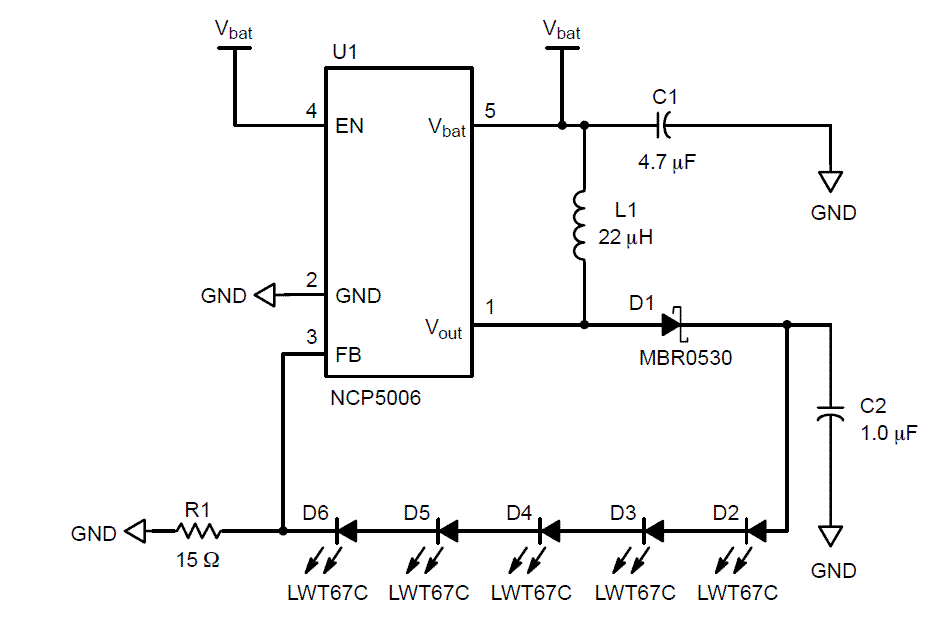

    NCP5006电路图
