NCP336

 Controlled Load Switch, 3.0 A, without Auto-Discharge Path

制造商：ON

中文资料及数据手册

在线购买

产品信息

The NCP336 and NCP337 are very low Ron MOSFETs controlled by an external logic pin, allowing optimization of battery life, and portable device autonomy. Indeed, thanks to a current consumption optimization with PMOS structure, leakage currents are eliminated by isolating connected IC on the battery when not used.
  • 1.2 V - 5.5 V operating range
  • 21 mΩ R
  • at 4.5 V
  • DC current up to 3 A
  • Output Auto-discharge

电路图、引脚图和封装图

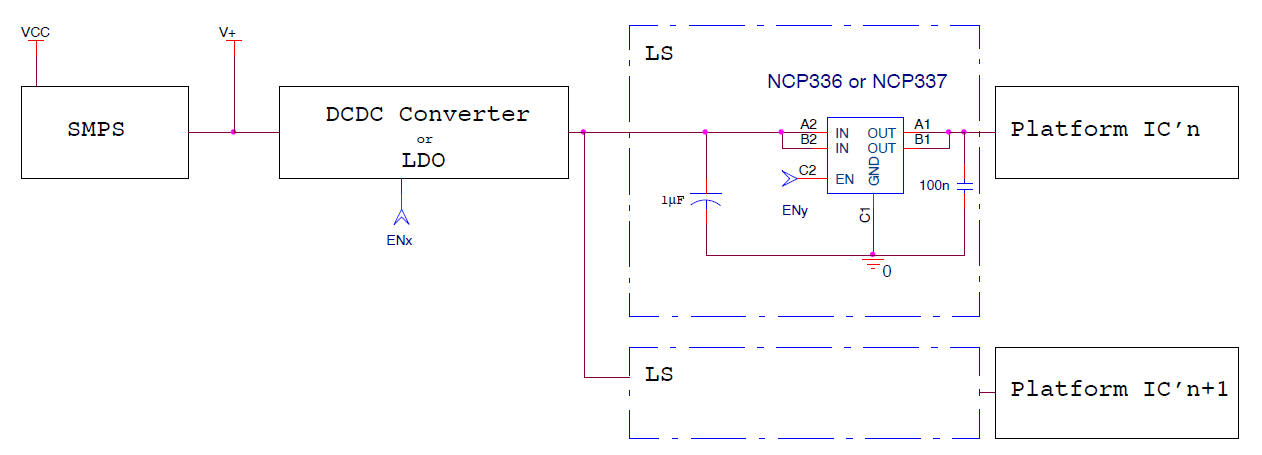

    NCP336电路图
