NCP330

 Controlled Load Switch, Soft-Start, 3.0 A

制造商：ON

中文资料及数据手册

在线购买

产品信息

The NCP330 is a low Ron N-channel MOSFET controlled by a soft-start sequence of 2 ms for mobile applications. The very low RDS(on) allows system supplying or battery charging up to DC 3A. The device is enable automatically if a Power Supply is connected on Vin pin (active High) and maintained off if no Vin (internal pull down).
  • 1.8 V to 5.5 V operating voltage
  • 30 mΩ R
  • DC current up to 3 A
  • Buit in soft start
  • Reverse voltage protection
  • Active high enable pin with integrated bridge

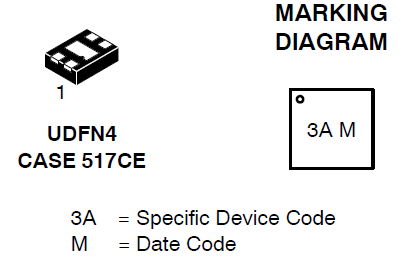

电路图、引脚图和封装图

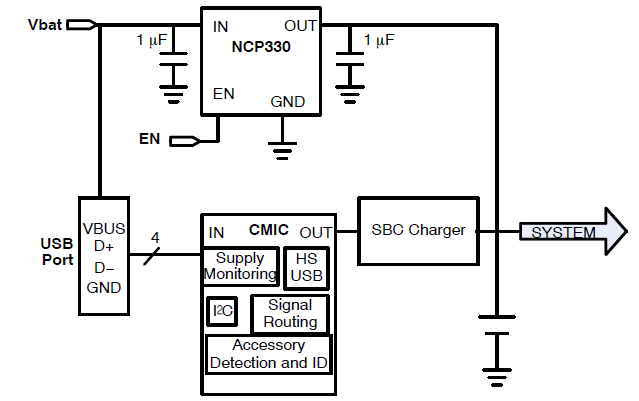

    NCP330电路图
