NCP1397

Controller, High Performance, Resonant Mode, with Integrated High Voltage Drivers

制造商：ON

中文资料及数据手册

NCP1397datasheet.pdf

产品信息

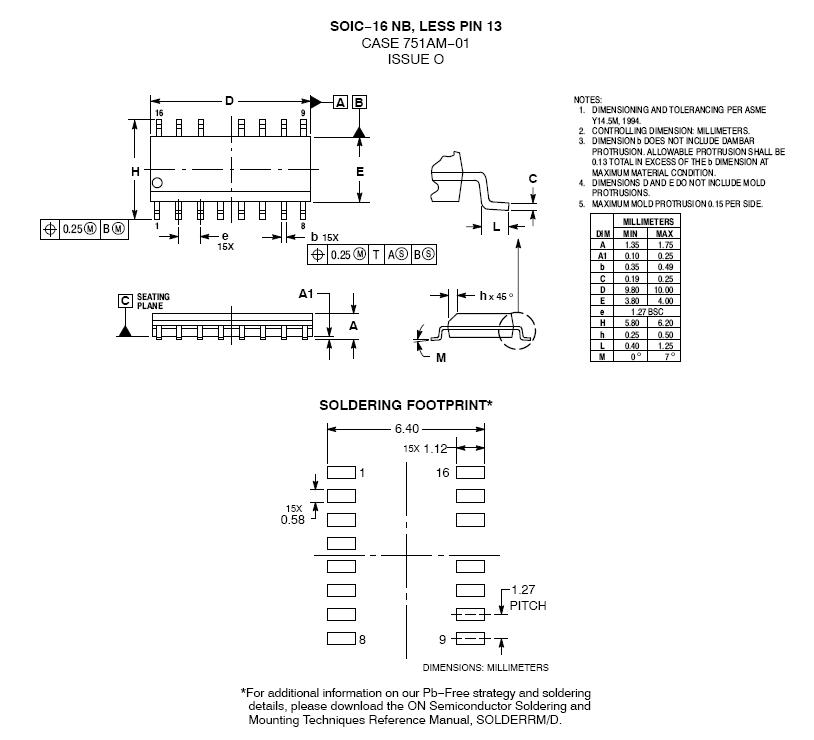

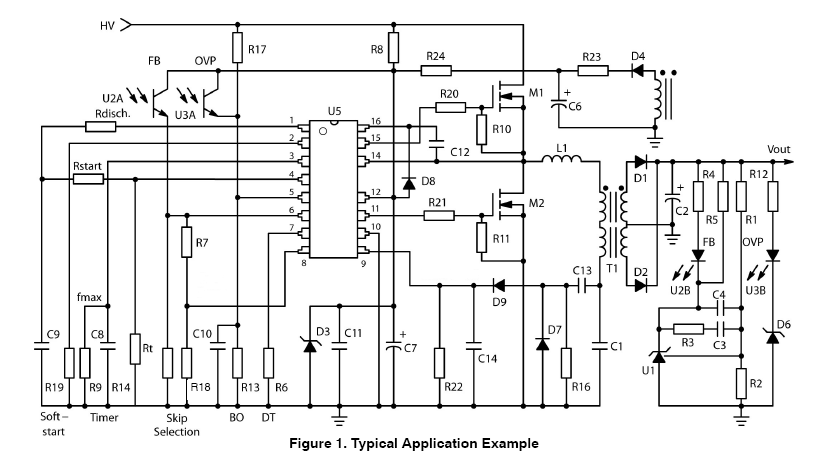

The NCP1397 is a high performance controller that can be utilized in half bridge resonant topologies such as series resonant, parallel resonant and LLC resonant converters. It integrates 600 V gate drivers, simplifying layout and reducing external component count. With its unique architecture, including a 500 kHz Voltage Controlled Oscillator whose control mode permits flexibility when an ORing function is required, the NCP1397 delivers everything needed to build a reliable and rugged resonant mode power supply. The NCP1397 provides a suite of protection features with configurable settings to optimize any application. These include: auto-recovery or fault latch-off, brown-out, open optocoupler, soft-start and short-circuit protection. Deadtime is also adjustable to overcome shoot through current. NCV1397 offers an Automotive certified version (AEC-Q100/PPAP)

Adjustable minimum switching frequency with 3% accuracy
Brown-out input
1 A / 0.5 A Peak Current Sink / Source Drive
Timer-based OCP input with auto-recovery
Second latched OCP level
Adjustable deadtime from 100 ns to 2 us
Adjustable soft-start

优势特点

特性		优势

Adjustable minimum switching frequency with 3% accuracy		Keeps the converter operation in the right region & simplifies design
Brown-out input		Simple PFC association
1 A / 0.5 A Peak Current Sink / Source Drive		High gate drive capability
Timer-based OCP input with auto-recovery		Allows transient overload, protects against overpower
Second latched OCP level		Protects application in case of short circuit
Adjustable deadtime from 100 ns to 2 us		Prevents shoot-through currents and allows for optimization based on MOSFET characteristics
Adjustable soft-start		Reduces startup currents
