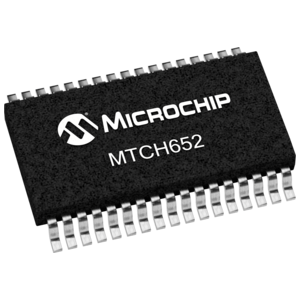

The MTCH652 is a compact boost convertor, with up to 19 level shifters, which provides an easy-to-use solution for driving High Voltage (HV) outputs.

MTCH652 requires only a 3-wire serial interface, latch enable (LE), 2 capacitors, a PWM, and a small inductor.  The PWM is used to drive the boost and allows flexibility in duty cycle and frequency.  The selectable internal Soft Start limits initial in-rush currents, preventing system brown outs.

  19 High Voltage I/O Lines

  Built-in Boost

  Internal Switch

  1.8V to 5.5V Input Operating Range

  Low Quiescent Current: <200 μA

  Low Shutdown Current: 1.5 μA, typical

  Up to 50 mA Output Current, at VIN = 3.6V and VOUT = 12V

  The Boost is Driven by an External PWM Allowing for Greater Boost Flexibility

  Selectable Output Voltage Range: 6V, 8V, 10V, 12V, 14V, 16V and 18V

  Selectable Current Limiting

  Selectable Soft Start

  High-Speed SPI Interface:1 MHz max.

  Output Enable (OE) Independent of SPI Interface

  Built-in Discharge Circuit
