MTCH650

Line driver device, with 21 level shifters available.

制造商:

产品信息

The MTCH650 is a line driver device, with 21 level shifters available.  MTCH650 require only a 3-wire serial interface, latch enable (LE), and 2 capacitors.

While the MTCH650 and MTCH652 are very similar, the MTCH650 does not include a built-in boost circuit.  The MTCH650 will require an external boost voltage device, such as the MCP16301.


  21 High Voltage I/O lines

  1.8V to 5.5V Input Operating Range

  Low Quiescent Current: <200 μA

  Low Shutdown Current: 1.5 μA typical

  Up to 100 mA Output Current with 5 mA per

  OUTxx Channel

  Output Enable (OE) Independent of SPI Interface

  3.6 to 18V External VPPIN Range

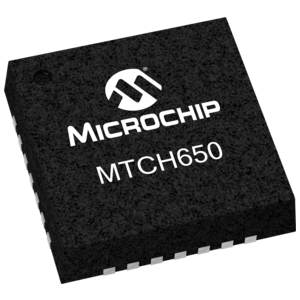

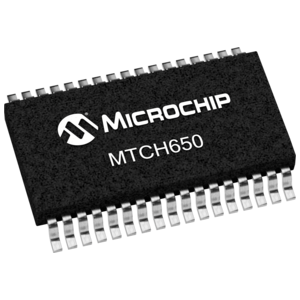

    MTCH650封装图
