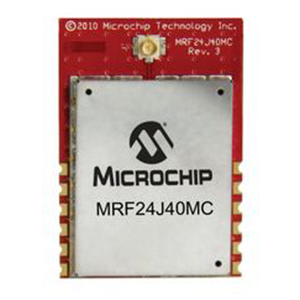

MRF24J40MC
2.4 GHz IEEE 802.15.4 PowerTransceiver Module (tray)
制造商:
产品信息
Please consider this device
MRF24J40MC is a 2.4 GHz IEEE 802.15.4 radio transceiver module intended for longer range applications. The MRF24J40MC has an external antenna connector, matching circuitry, and supports the ZigBee®, MiWi™, MiWi P2P and MiWi Pro protocols. The MRF24J40MC module connects to hundreds of PIC® microcontrollers via a 4-wire SPI interface and is an ideal solution for AMR/AMI metering, wireless sensor networks, home automation, building automation and consumer applications.
2.4 GHz IEEE 802.15.4 Transceiver Module
Supports ZigBee®, MiWi™, and MiWi P2P protocols
FCC (USA), IC (Canada), ETSI (Europe)
External Antenna Connector : Ultra Miniature Coaxial (U.FL)
Simple four-wire SPI interface to PIC® microcontroller
Integrated PA/LNA- Tx power +20 dBm to +23dBm (depending on the antenna)Rx sensitivity -108 dBm (antenna gain not included)
Hardware CSMA-CA Mechanism, Automatic ACK response
Hardware security engine (AES-128)
Automatic packet retransmit capable
Small size: 0.9" x 1.3" (22.9 mm x 33.0 mm), Surface Mountable
