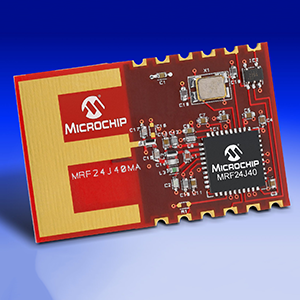

MRF24J40MA is a certified 2.4 GHz IEEE 802.15.4 radio transceiver module. The MRF24J40MA has an integrated PCB antenna, matching circuitry, and supports the ZigBee™, MiWi™ and MiWi P2P protocols. The MRF24J40MA module connects to hundreds of PIC® microcontrollers via a 4-wire SPI interface and is an ideal solution for wireless sensor networks, home automation, building automation, and consumer applications.

  2.4GHz IEEE 802.15.4 Transceiver module supports ZigBee™, MiWi™, and MiWi P2P protocols

  FCC (USA), IC (Canade), ETSI (Europe) Certified

  Integrated PCB Antenna with simple four-wire SPI interface to PIC® microcontroller

  Low current consumption (Tx 23mA, Rx 19mA, Sleep 2uA)

  Hardware CSMA-CA Mechanism

  Automatic ACK response

  Hardware security engine (AES-128)

  Automatic packet retransmit capable

  Surface Mountable
