The MP34DB02 is an ultra-compact, low-power, omnidirectional, digital MEMS microphone built with a capacitive sensing element and an IC interface with stereo operation capability.

The sensing element, capable of detecting acoustic waves, is manufactured using a specialized silicon micromachining process dedicated to produce audio sensors.

The IC interface is manufactured using a CMOS process that allows designing a dedicated circuit able to provide a digital signal externally in PDM format.

The MP34DB02 has an acoustic overload point of 120 dBSPL with a best on the market 62.6 dB signal-to-noise ratio and -26 dBFS sensitivity.

The MP34DB02 is available in a bottom-port, SMD-compliant, EMI-shielded package and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.

mp34db02这是一种超小型、低功耗、全方位、数字MEMS麦克风与电容式传感元件和立体作战能力的IC接口构建。

传感元件，能够检测声波，是使用专门的硅微机械加工工艺，专门生产音频传感器制造的。

IC接口是使用CMOS工艺，设计专用的电路能够提供外部PDM格式数字信号制作。

有120的mp34db02 dBSPL与市场上最好的62.6 dB的信噪比和灵敏度26 dBfs声学超载点。

在底部的mp34db02港口，SMD标准可用，EMI屏蔽封装，保证工作在扩展温度范围从- 40°C + 85°C.

Key Features

• Single supply voltage

• Low power consumption

• 120 dBSPL acoustic overload point

• 62.6 dB signal-to-noise ratio

• Omnidirectional sensitivity

• –26 dBFS sensitivity

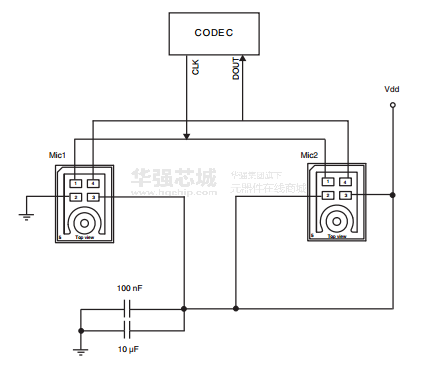

• PDM single-bit output with option for stereo configuration

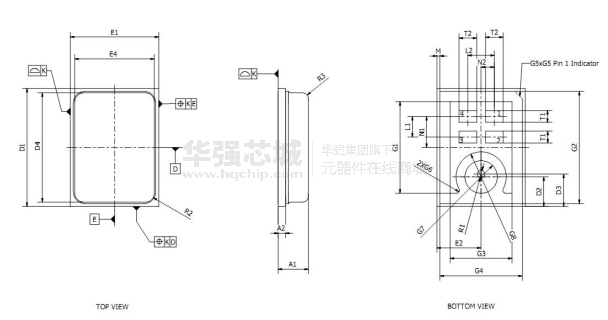

• RHLGA package

• Bottom-port design

• SMD-compliant

• EMI-shielded

• ECOPACK^®, RoHS and “Green” compliant

主要特点

单电源电压

低功耗

120 dBSPL声学超载点

62.6分贝信噪比

全方位灵敏度

–26 dBfs的敏感性

PDM单点输出的立体声配置选项

rhlga包

底端设计

SMD标准

电磁干扰

®Ecopack，ROHS和“绿色”标准
