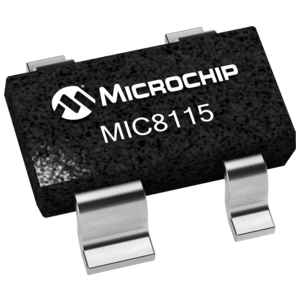

The MIC8115 is an inexpensive microprocessor supervisory circuit that monitors power supplies in microprocessor based systems.

The function of this device is to assert a reset if the power supply drops below a designated reset threshold level or /MR is forced low.

The MIC8115 has an active low /RESET output. The reset output is guaranteed to remain asserted for a minimum of 1100ms after VCC has risen above the designated reset threshold level. The MIC8115 comes in a 4-pin SOT-143 package.

   Precision voltage monitor for 3.3V power supplies

   Specifically tailored to the AMD Elan SC500 Series

   /RESET remains valid with VCC as low as 1V

   5µA typical supply current

   1100ms minimum reset pulse width

   Manual reset input

   Available in 4-Pin SOT-143 Package
