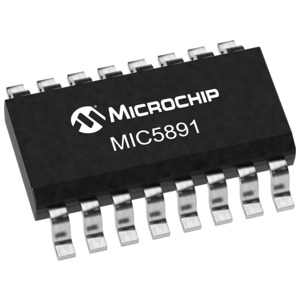

The MIC5891 latched driver is a high-voltage, high current integrated circuit comprised of eight CMOS data latches, CMOS control circuitry for the common STROBE and OUTPUT ENABLE, and bipolar Darlington transistor drivers for each latch.Bipolar/MOS construction provides extremely low power latches with maximum interface flexibility.The MIC5891 will typically operate at 5MHz with a 5V logic supply.The CMOS inputs are compatible with standard CMOS, PMOS, and NMOS logic levels. TTL circuits may be used with appropriate pull-up resistors to ensure a proper logic-high input.A CMOS serial data output allows additional drivers to be cascaded when more than 8 bits are required.The MIC5891 has open-emitter outputs with suppression diodes for protection against inductive load transients. The output transistors are capable of sourcing 500mA and will sustain at least 35V in the on-state.Simultaneous operation of all drivers at maximum rated current requires a reduction in duty cycle due to package power limitations. Outputs may be paralleled for higher load current capability.The MIC5891 is available in a 16-pin plastic DIP package (N) and 16-pin wide SOIC package (WM).

  High-voltage, high-current outputs

  Output transient protection diodes

  CMOS-, PMOS-, NMOS-, and TTL-compatible inputs

  5MHz typical data input rate

  Low-power CMOS latches
