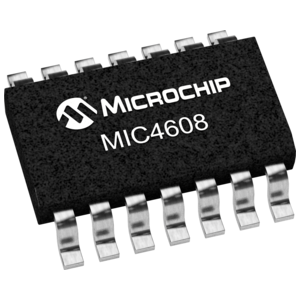

The MIC4608 is a 600V Half Bridge IGBT or MOSFET driver. The MIC4608 features a 450ns propagation delay including a 200ns input filtering time to prevent unwanted pulses. The low-side and high-side gate drivers are independently controlled (with shoot thru protection) or controlled with a single PWM signal. The MIC4608 has TTL input thresholds.The robust operation of the MIC4608 ensures that the outputs are not affected by supply glitches, HS ringing below ground, or HS slewing with high-speed voltage transitions. Undervoltage protection is provided on both the low-side and high-side drivers.The MIC4608 is available in a 14-pin SOIC package. The MIC4608 has an operating junction temperature range of -40°C to +125°C.

  20V

  Drives high-side and low-side N-Channel MOSFETs or IGBTs with independent inputs or with a single PWM signal

  ±50V/ns dV/dt immunity

  TTL input thresholds

  200ns input filtering time

  Shoot thru protection

  Low power consumption

  Supply undervoltage protection

  -40°C to +125°C junction temperature range
