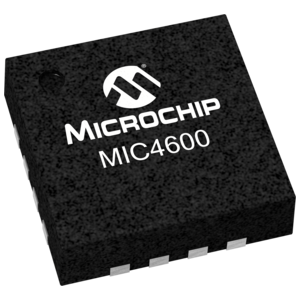

The Micrel MIC4600 is a 28V half bridge MOSFET driver targeted for cost sensitive applications requiring high performance such as set-top boxes, gateways, routers, computing peripherals, telecom and networking equipment.The MIC4600 operates over a supply range of 4.5V to 28V. It has an internal linear regulator which provides a regulated 5V to power the MOSFET gate drive and operates up to 1.5MHz switching frequency.The MIC4600 uses an adjustable dead time circuit to prevent shoot-through in the external high and low-side MOSFETs.The MIC4600 is available in a small 3mm x 3mm QFN package with a junction temperature range of -40°C to 125°C.

  Adjustable dead time circuitry

  Anti-shoot-through protection

  Internal LDO for single supply operation

  Input voltage range: 4.5V to 28V

  Fast propagation delay: 20ns

  Up to 1.5 MHz operation

  Low voltage logic level inputs for µC or FPGA driven power solutions

  Independent inputs for low and high side drivers

  2Ω gate drive capable of driving 3000pF load with 15ns rise and fall times

  Low 450µA typical quiescent current

  3mm x 3mm QFN package

  -40°C to +125°C junction temperature range
