The MIC2292 and MIC2293 are high frequency, pulse-width modulator (PWM) boost regulators optimized for constant-current, white LED driver applications. Because of their constant PWM switching frequencies of 1.6MHz and 2MHz, respectively, the MIC2292/93 can use the smallest external components, allowing designers to avoid sensitive IF bands in their RF applications.

The products feature an internal Schottky diode and two levels of output overvoltage protection allowing a small size and efficient DC/DC solution that requires only four external components.

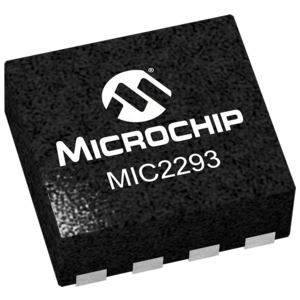

The 2.5V to 10V input voltage range of MIC2292/3 allows direct operation from 1- and 2-cell Li-Ion as well as 3- to 4-cell NiCad/NiMH/Alkaline batteries. The MIC2292/3 products are available in a small size 2mm x 2mm 8-lead MLF®package and have a junction temperature range of -40°C to +125°C.

  2.5V to 10V input voltage

  Output voltage up to 34V

  Internal Schottky diode

  1.6MHz PWM operation (MIC2292)

  2.0MHz PWM operation (MIC2293)

  Stable with ceramic capacitors

  15V and 34V output overvoltage protection options

  500mA switch current rating

  95mV feedback voltage

  <1% line and load regulation

  <1µA shutdown current

  Over-temperature protection

  UVLO

  8-pin 2mm x 2mm MLF®package

  -40°C to +125°C junction temperature range
