Meets JEDEC JC42.4 Mobile Platform Memory Module Thermal Sensor specification

  Critical Event output pin

  User-programmalbe settings for shutdown modes, Event and critical output limits,and hysteresis limits

  Resolution of 0.25°C per LSB

  ±1°C Max accuracy from +75°C to +95°C

  ±2°C Max accuracy from +40°C to +125°C

  ±3°C Max accuracy from -20°C to +125°C

  Low Operating Current: 200 µA (typical)

  2-wire I²C™/SMBus Compatible Interface

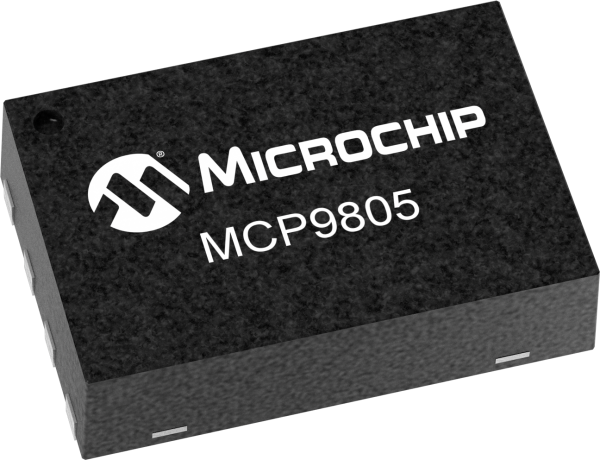

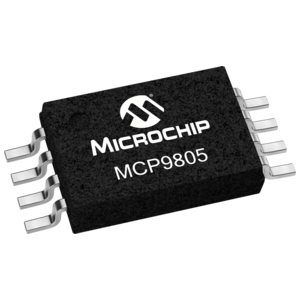

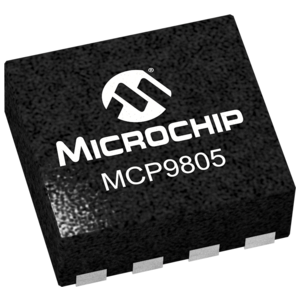

  8-pin TSSOP and 2mm x 3mm 8-pin DFN Packages
