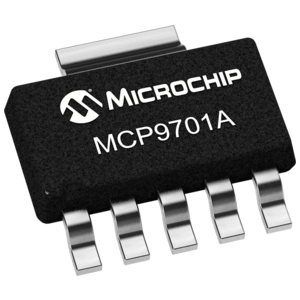

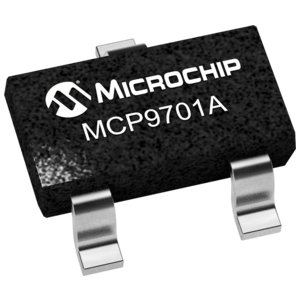

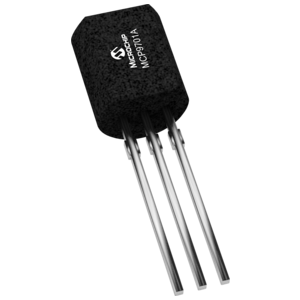

Linear Active Thermistor™ ICs are sensors whose output voltage is directly proportional to measured temperature. The MCP9701A can accurately measure temperature from -40C to +125C. The output of the MCP9701A is calibrated to a slope of 19.53mV/°C and has a DC offset of 400mV. The offset allows reading negative temperatures without the need for a negative supply. The MCP9700A is packaged in space saving 5-pin SC-70, and 3-ld TO-92 packages.

  Linear Temperature Slope: 19.53mV/°C

  ±2°C Accuracy from 0°C to +70°C

  -2°C/+4°C Accuracy from -40°C to +125°C

  Very low Operating Current: 12µA (max)

  Operates from 3.1V to 5.5V

  No external Components Required

  Space-saving SC-70 Package

  AEC-Q100 Qualified Grade 1
