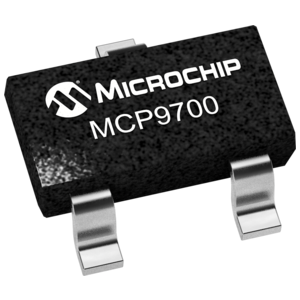

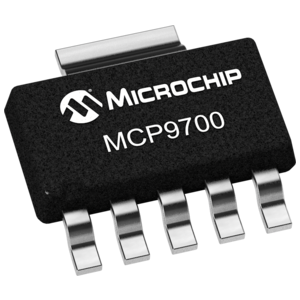

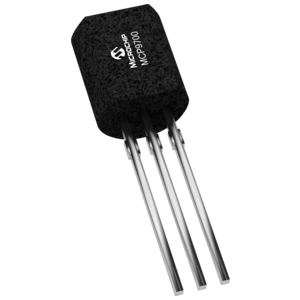

Linear Active Thermistor™ ICs are sensors whose output voltage is directly proportional to measured temperature. The MCP9700 can accurately measure temperature from -40C to +150C. The output of the MCP9700 is calibrated to a slope of 10mV/°C and has a DC offset of 500mV. The offset allows reading negative temperatures without the need for a negative supply. The MCP9700 is packaged in space saving 5-pin SC-70 packages, making it ideal for space-critical and low-cost applications.

   Linear Temperature Slope: 10mV/°C

   ±4°C Accuracy from 0°C to +70°C

   -4°C/+6°C Accuracy from -40°C to +150°C

   Very low Operating Current: 12µA (max)

   Operates from 2.3V to 5.5V

   No external Components Required

   Space-saving SC-70 Package

  AEC-Q100 Qualified Grade 0
