MCP9501/2/3/4 family of devices are temperature switches with ±1°C (typical) accurate factory set output thresholds. These devices are ideal for high power supply systems where an overtemperature protection circuit is needed. These devices do not require external components, consume 25 µA (typical), and the factory set thresholds provide simplicity.

  Factory Set Temperature Switch

  Available Temperature Switch Thresholds:

  TSET = -35°C,-25°C, -15°C, -5°C, 5°C, 15°C, 25°C, 35°C, 45°C, 55°C, 65°C, 75°C,85°C, 95°C, 105°C, 115°C, 125°C

  Wide Operating Voltage Range: 2.7V to 5.5V

  Low Supply Current: 25 µA (typical)

  Temperature Switch Accuracy:

  ±1°C (typical)

  ±4°C (maximum) -15°C to +75°C

  ±6°C (maximum) -40°C to +125°C

  Switch Threshold Options (Hot/Cold):

  Rising Temp.: MCP9501/2 (Hot Option)

  Falling Temp.: MCP9503/4 (Cold Option)

  Output Configuration Options:

  Active Low, Open-Drain Output: MCP9501/3

  Uses External Pull-up Resistor

  Active-High, Push-Pull Output: MCP9502/4

  User Selectable Hysteresis: 2°C or 10°C (typical)

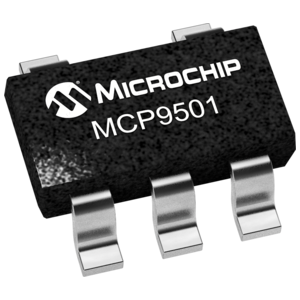

  5-lead SOT-23 package

  AEC-Q100 Qualified Grade 1
