MCP8024
3-Phase Brushless DC (BLDC) Motor Gate Driver With Power Modules
制造商:
产品信息
Please consider this device
The MCP8024 is a 3-Phase Brushless DC (BLDC) Gate Driver with power module. The MCP8024 device integrates three half-bridge drivers to drive external NMOS/NMOS transistor pairs configured to drive a 3-phase BLDC motor, a comparator, a voltage regulator to provide bias to a companion microcontroller, power monitoring comparators, an overtemperature sensor, two level translators and three operational amplifiers for motor current monitoring.
The MCP8024 has three half-bridge drivers capable of delivering a peak output current of 0.5A at 12V for driving high-side and low-side NMOS MOSFET transistors. The drivers have shoot-through, overcurrent, and short-circuit protection.
The MCP8024 buck converter is capable of delivering 750 mW of power for powering a companion microcontroller. The buck regulator may be disabled if not used. The on board 5V and 12V low dropout voltage regulators are capable of delivering 20 mA of current.

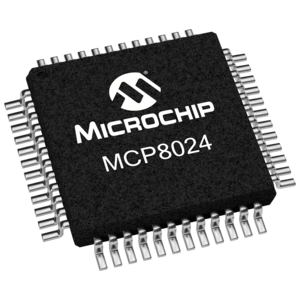

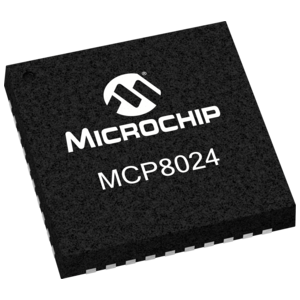

The MCP8024 operation is specified over a temperature range of -40°C to +150°C. Package options include the 40-lead 5x5 QFN and 48-lead 7x7 TQFP.
Three Half-bridge Drivers Configured to DriveExternal High-Side NMOS and Low-Side NMOSMOSFETs:
Independent input control for high-sideNMOS and low-side NMOS MOSFETs
Peak output current: 0.5A @ 12V
Shoot-through protection
Overcurrent and short circuit protection
Adjustable Output Buck Regulator (750 mW)
Fixed Output Linear Regulators:
5V @ 20 mA
12V @ 20 mA
Internal Bandgap Reference
Three Operational Amplifiers for Motor PhaseCurrent Monitoring and Position Detection
Overcurrent Comparator
Two Level Translators
Input Voltage Range: 6 - 40V
Operational Voltage Range: 6 - 28V
Undervoltage Lockout (UVLO): 6V
Overvoltage Lockout (OVLO): 28V
Transient (100 ms) Voltage Tolerance: 48V
Extended Temperature Range: TA -40 to +150°C
Thermal Shutdown
