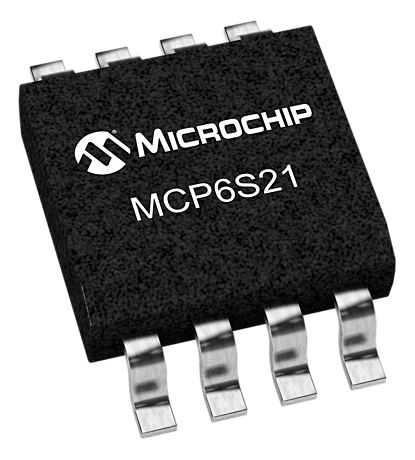

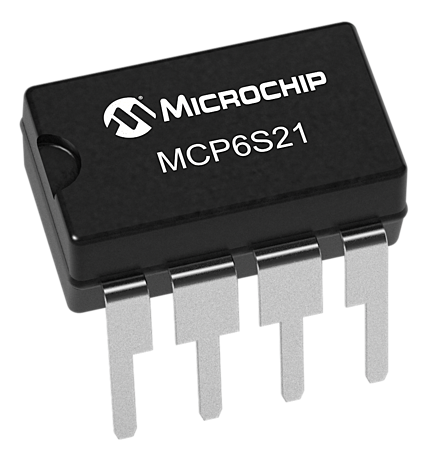

The MCP6S21, MCP6S22, MCP6S26, and MCP6S28 Programmable Gain Amplifiers offer 1, 2, 6 or 8 input channels respectively and eight steps of gain. These devices are programmable over an SPI bus and thus add gain control and input channel selection to the embedded control system. This is all achieved in one simple integration that allows for considerably greater bandwidth at a low supply current.

  SPI Bus to Control Gain

  Gain Steps of 1, 2, 4, 5, 8, 10, 16 and 32 V/V

  -3 dB Bandwidth of 2 to 12 MHz

  Gain Error

  Rail-to-Rail Input and Output

  Low Noise: 10 nV/rHz

  Low Supply Current: 1.1 mA (typical)

  Single Supply 2.5V to 5.5V

  Industrial Temperature Range: -40°C to 85°C

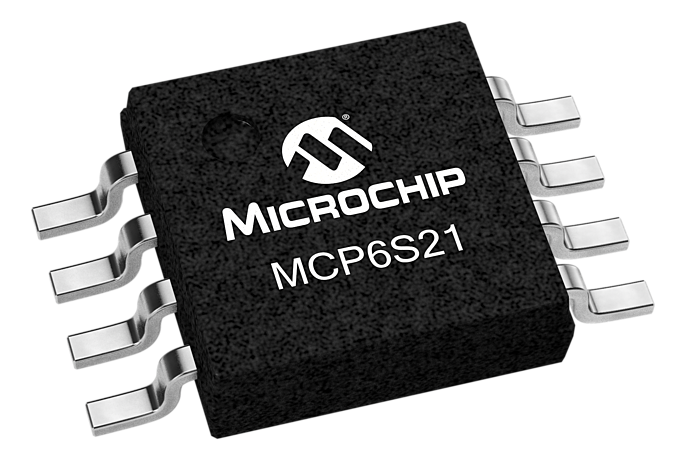

  Small 8-pin MSOP Package
