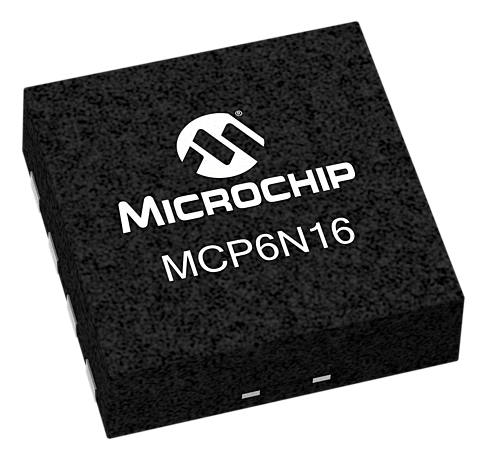

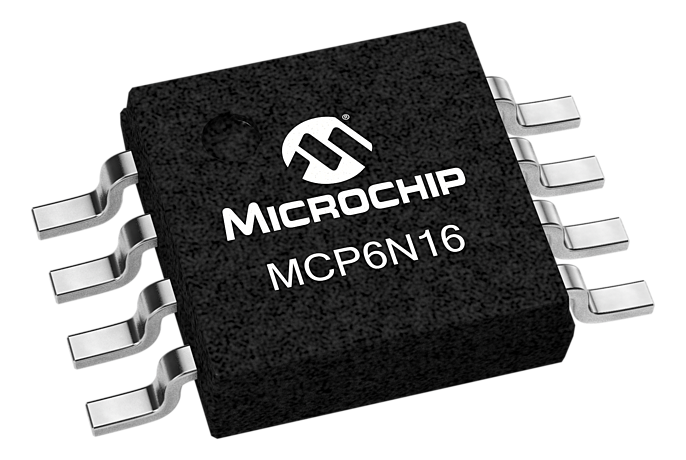

The MCP6N16 is a zero-drift instrumentation amplifier designed for single-supply operation with rail-to-rail input (no common mode crossover distortion) and output performance. The supply voltage range is low enough to support many portable applications. All devices are fully specified from -40ºC to +125ºC. Each device has EMI filters at the input pins, providing superior EMI rejection. This family has three minimum gain options (1, 10 and 100 V/V) in order to allow the user to optimize the input offset voltage and input noise for different applications.

  High DC Precision

  Vos: ± 17 µV (Gmin = 100)

  Low Offset Drift: ± 60 nV/ºC

  CMRR: 112 dB minimum

  PSRR: 110 dB minimum

  Low Gain Error: ±0.15% maximum

  Flexibility

  Minimum Gain (Gmin) Options: 1, 10 and 100 V/V

  Rail-to-Rail Input and Output

  Gain Set by Two External Resistors

  Bandwidth: 500 kHz (typical)

  Power Supply:

  Vdd: 1.8V to 5.5V

  Iq: 1.1 mA (typical)

  Power Saving (Enable) Pin: EN

  Enhanced EMI Protection:

  Electromagnetic Interference Rejection Ratio (EMIRR): 111 dB at 2.4 GHz

  Extended Temperature Range: -40ºC to +125ºC
