MCP6N11

500 kHz Single Instrumentation Amplifier with mCal Tecnology, Enable

制造商:Microchip

中文资料及数据手册

在线购买

产品信息

The MCP6N11 single instrumentation amplifier is optimized for single-supply operation with rail-to-rail input and output performance. Two external resistors set the gain, minimizing gain error and drift over temperature. The supply voltage range of 1.8V to 5.5V is low enough to support many portable applications. All devices are fully specified from -40 to +125C.

  Rail-to-rail Input and Output

  Gain Set by 2 External Resistors

  Enable/Vos Calibration Pin

  Operating Voltage Range: 1.8V to 5.5V

  No Common Mode Crossover Distortion

  Extended Temperature Range: -40 to +125C

Introduction video to the MCP6N11 & MCP6V2x Wheatstone Bridge Reference Design located below

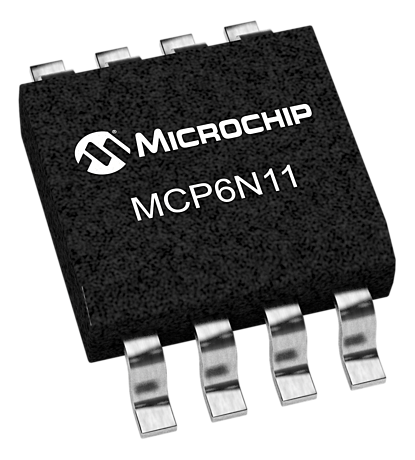

    MCP6N11封装图
