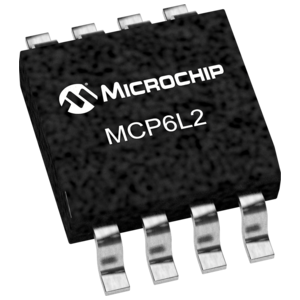

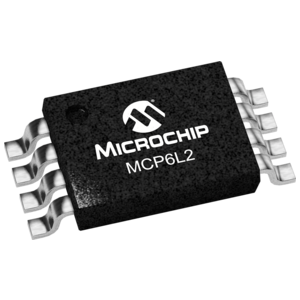

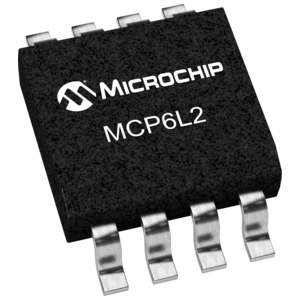

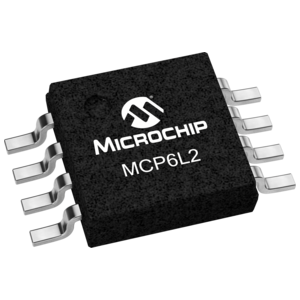

The MCP6L2 dual operational amplifier (op amp) has a gain bandwidth product of 2.8 MHz with low typical operating current of 200 and an offset voltage that is less than 3 mV. The MCP6L2 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP6L2 operates with a single supply voltage that can be as low as 2.7V, while drawing less than 330 of quiescent current per amplifier. The MCP6L2 is available in standard 8-lead SOIC and MSOP packages.

   Low Input Bias Current:1 pA (typ.)

   Gain-Bandwidth Product: 2.8 MHz

   Low Quiescent Current: 200 µA/amplifier (typical)

   Low Input Offset Voltage: 3 mV (max.)

   Unity Gain Stable

   Rail to Rail Output

   Extended Temperature Range
