These comparators are optimized for low power, single-supply operation with greater than rail-to-rail input operation. The push-pull output of the MCP6561/2/4 family supports rail-to-rail output swing, and interfaces with TTL/CMOS logic. The output limits supply current surges, and dynamic power consumption while switching. AEC-Q100 Grade 1 qualification is available for this device

  Dual, Push-Pull Outputs

  47ns Propogation Delay

  Low Operating Voltage, 1.8V to 5.5V

  Low Operating Current, 100uA (typical)

  Rail-to-Rail Input/Output

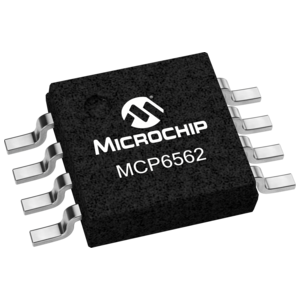

  Small 8-pin MSOP Package

  AEC-Q100 Grade 1
