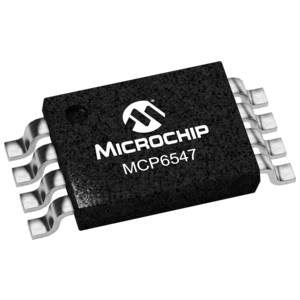

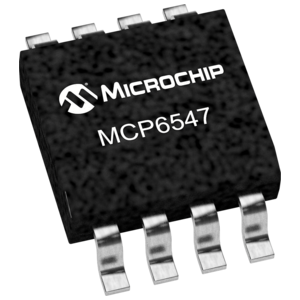

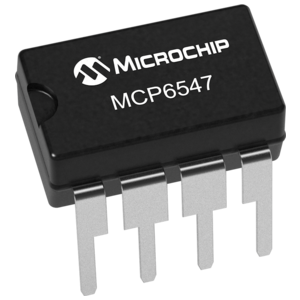

The MCP6547 is an Open Drain, dual comparator. This single-ended device operates from 1.6V to 5.5V, with typical quiescent current of 600 nA and a maximum of 1 microamp and is 10V output capable. This device is offered in the eight lead PDIP, SOIC and MSOP package. AEC-Q100 Grade 1 qualification is available for this device

  Dual, Open Drain Outputs

  Output can be level shifted up to 9V via external pull-up resistor

  4us Propogation Delay

  Low Operating Voltage, 1.6V to 5.5V

  Low Operating Current, 600nA (typical)

  AEC-Q100 Grade 1
