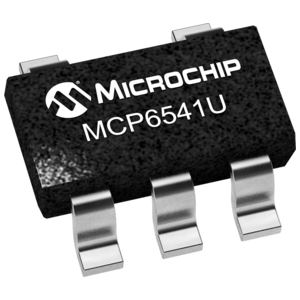

The MCP6541U is a Push-pull, single comparator. This single-ended device operates from 1.6V to 5.5V, with typical quiescent current of 600 nA and a maximum of 1 microamp. This device is offered in the five lead SOT-23 and five lead SC-70 package. AEC-Q100 Grade 1 qualification is available for this device

  Push-Pull Output

  4us Propogation Delay

  Low Operating Voltage, 1.6V to 5.5V

  Low Operating Current, 600nA (typical)

  Rail-to-Rail Input/Output

  Small 5-pin SOT-23 Package

  AEC-Q100 Grade 1
