The MCP6441 device is a single nanopower operational amplifier (op amp), which has low quiescent current (450 nA, typical) and rail-to-rail input and output operation. This op amp is unity gain stable and has a gain bandwidth product of 9 kHz (typical).These devices operate with a single supply voltage as low as 1.4V. These features make the family of op amps well suited for single-supply, battery-powered applications. The MCP6441 op amp is designed with Microchip’s advanced CMOS process and offered in the 5-pin SC70 and SOT-23 single packages. All devices are available in the extended temperature range, with a power supply range of 1.4V to 6.0V.

  Low Quiescent Current: 450 nA (typical)

  Gain Bandwidth Product: 9 kHz (typical)

  Supply Voltage Range: 1.4V to 6.0V

  Rail-to-Rail Input and Output

  Unity Gain Stable

  Slew Rate: 3V/ms (typical)

  Extended Temperature Range: -40°C to +125°C

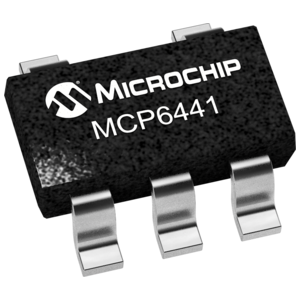

  Available in SOT23 and SC70
