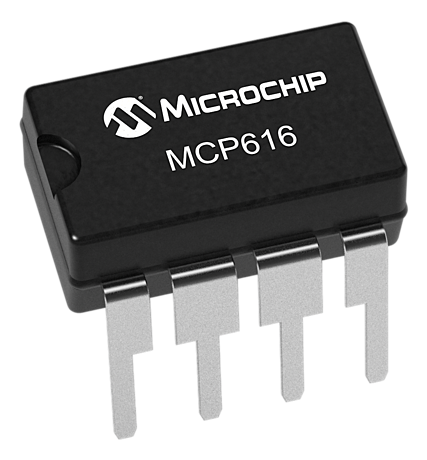

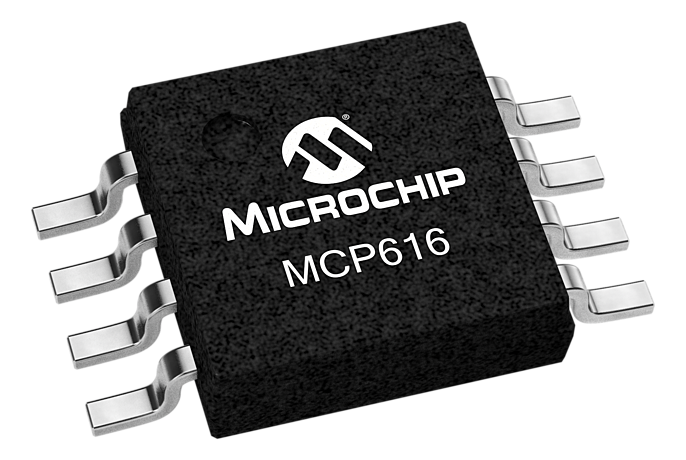

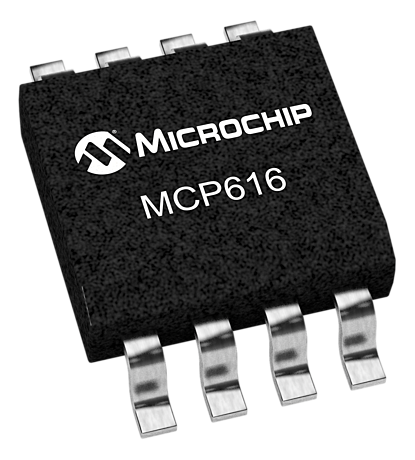

The MCP616 operational amplifier (op amp) has a gain bandwidth product of 190 kHz with a low typical operating current of 19 µA and an offset voltage that is less than 150 µV. The MCP616 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP616 operates with a single supply voltage that can be as low as 2.3V, while drawing less than 25 µA of quiescent current. The MCP616 is available in standard 8-lead PDIP, SOIC and MSOP packages. This amplifier is ideal for battery and loop-powered applications as well as industrial process control, low-power battery-operated devices, portable equipment, data acquisition equipment, test equipment and low-end audio applications.

  Trimmed for Low Offset Voltage

  190kHz Gain Bandwidth Product

  Unity gain stable

  Rail-to-Rail Output

  Specified over the Industrial Temperature Range
