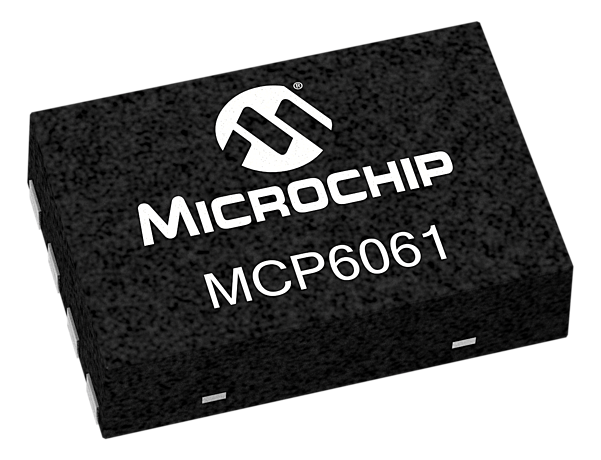

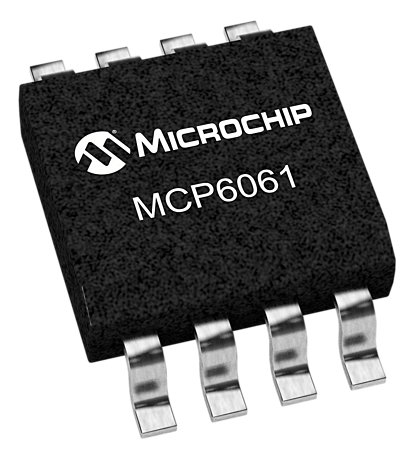

The Microchip Technology Inc. MCP6061/2/4 family of operational amplifiers (op amps) has low input offset voltage (±150 µV, maximum) and rail-to-rail input and output operation. This family is unity gain stable and has a gain bandwidth product of 730 kHz (typical). These devices operate with a single supply voltage as low as 1.8V, while drawing low quiescent current per amplifier (60 µA, typical). These features make the family of op amps well suited for single-supply, high precision, battery-powered applications. AEC-Q100 Grade 1 qualification is available for this device

  Trimmed for Low Offset Voltage

  730kHz Gain Bandwidth Product

  Operates down to 1.8V

  Unity gain stable

  Rail-to-Rail Input and Output

  Specified over the Extended Temperature Range

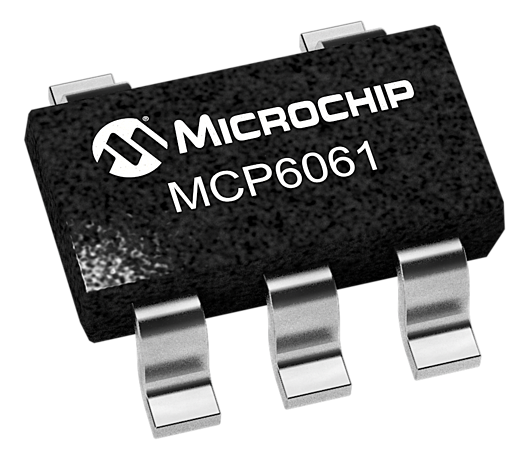

  Small 5-pin SOT-23 Package

  AEC-Q100 Grade 1
