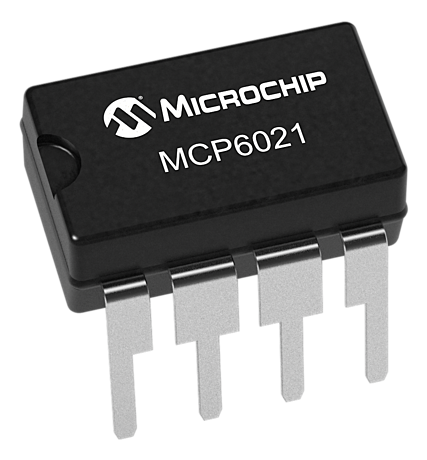

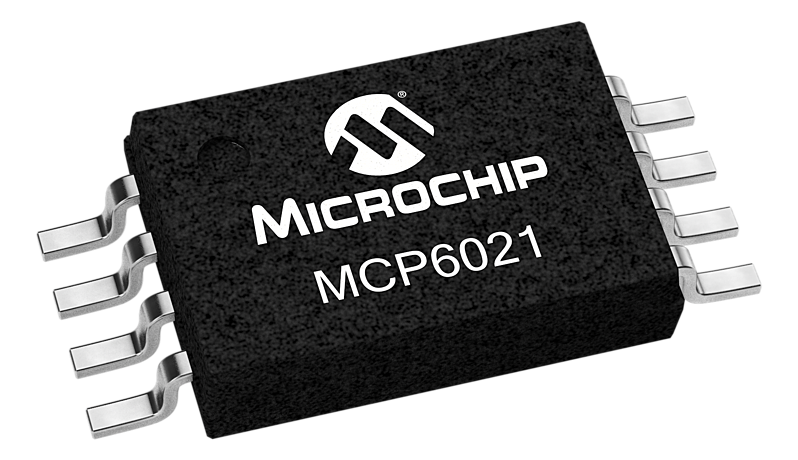

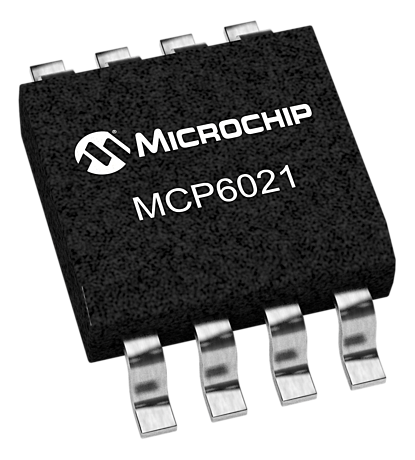

The MCP6021 operational amplifier (op amp) has a gain bandwidth product of 10 MHz with a low typical operating current of 1.0 mA and an offset voltage that is less than 0.5 mV.The MCP6021 provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP6021 operates with a single supply voltage that can be as low as 2.5V, while drawing less than 1.35 mA of quiescent current. The MCP6021 is available in standard 8-lead PDIP, SOIC and TSSOP packages. AEC-Q100 Grade 1 qualification is available for this device

  Trimmed for Low Offset Voltage

  10MHz Gain Bandwidth Product

  Rail-to-Rail Input/Output

  Unity Gain Stable

  Specified over the Extended Temperature Range

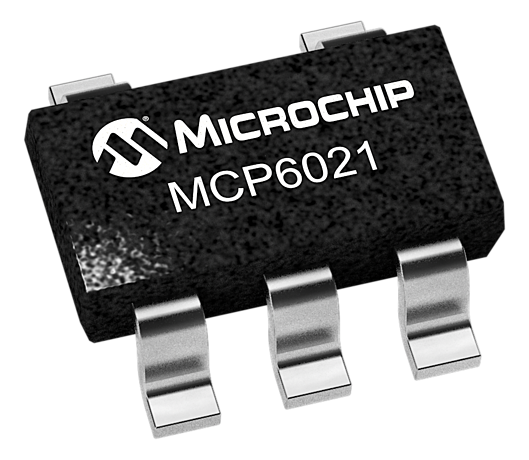

  Small 5-pin SOT-23 Package

  AEC-Q100 Grade 1
