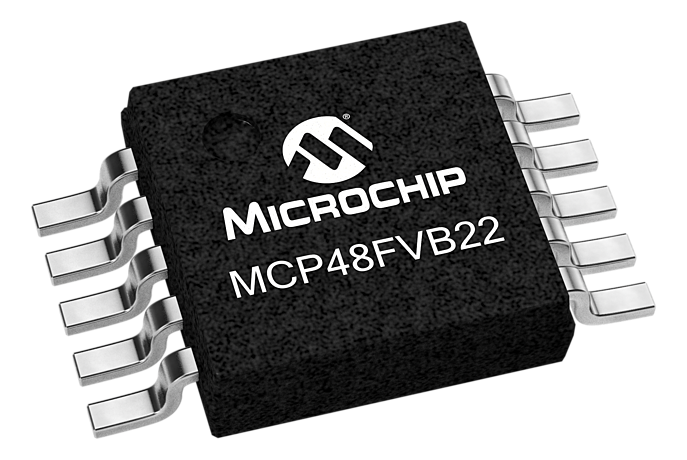

MCP48FVB22 is a dual channel 12-bit, voltage output Digital-to-Analog Converter with volatile memory and an SPI compatible serial interface. This device provides four different voltage reference options: device VDD, external VREF (buffered or unbuffered) and internal bandgap. It offeres high AC performance, low power consumption and fast settling time, which makes it suitable for consumer and industrial applications, such as set point control, offset adjustment and sensor calibration applications, and portable instrument.

For different resolutions and number of output channels, please check out our other parts in the MCP48FVBxx family.

  12-bit Resolutions

  Rail-to-Rail Output

  Fast Settling Time: 7.8 µs (typ)

  DAC Voltage Reference Options:

  Device VDD

  External VREF (buffered or unbuffered)

  Internal Bandgap (1.22V typ)

  Output Gain Options:

  Unity (1x)

  2x (when not using internal VDD as voltage source)

  Power-Down modes:

  Disconnects output buffer (High Impedance)

  Selection of VOUT pull-down resistors (100 kΩ or 1 kΩ)

  Low Power Consumption

  Normal Operation: 380µA (max)

  Power Down Operation: 650nA (typ)

  Single-Supply Operation: 2.7V to 5.5V

  SPI Interface

  10-lead MSOP Package

  Extended Temperature Range: -40°C to +125°C
