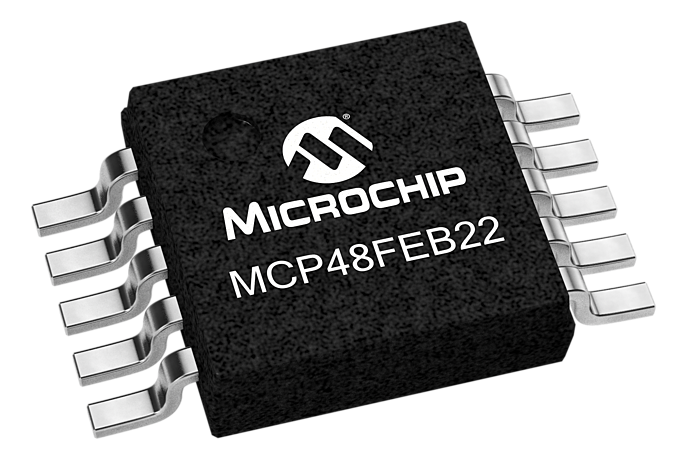

MCP48FEB22 is a dual channel, 12-bit, voltage output Digital-to-Analog Converter with EEPROM and an SPI Compatible Serial Interface. This device provides four different voltage reference options: device VDD, external VREF (buffered or unbuffered) and internal bandgap. It offers high AC performance, low power consumption and fast settling time. The device has integrated EEPROM to save DAC settings at power down. It is suitable for consumer and industrial applications, such as set point control, offset adjustment and sensor calibration applications, and portable instrument.

For different resolutions and number of output channels, please check out our other parts in the MCP48FEBxx family.

  12-bit Resolutions

  Rail-to-Rail Output

  Fast Settling Time: 7.8 µs (typ)

  DAC Voltage Reference Options:

  Device VDD

  External VREF (buffered or unbuffered)

  Internal Bandgap (1.22V typ)

  Output Gain Options:

  Unity (1x)

  2x (when not using internal VDD as voltage source)

  Non-Volatile Memory (EEPROM)

  User programmed POR/BOR output setting recall and Device Configuration bits

  Auto Recall of Saved DAC register setting

  Auto Recall of Saved Device Configuration(Voltage Reference, Gain, Power Down)

  Power-Down modes:

  Disconnects output buffer (High Impedance)

  Selection of VOUT pull-down resistors (100 kΩ or 1 kΩ)

  Low Power Consumption

  Normal Operation: 380µA (max)

  Power Down Operation: 650nA (typ)

  EEPROM write cycle: 1.9mA (max)

  Single-Supply Operation: 2.7V to 5.5V

  SPI Interface

  10-lead MSOP Package

  Extended Temperature Range: -40°C to +125°C
